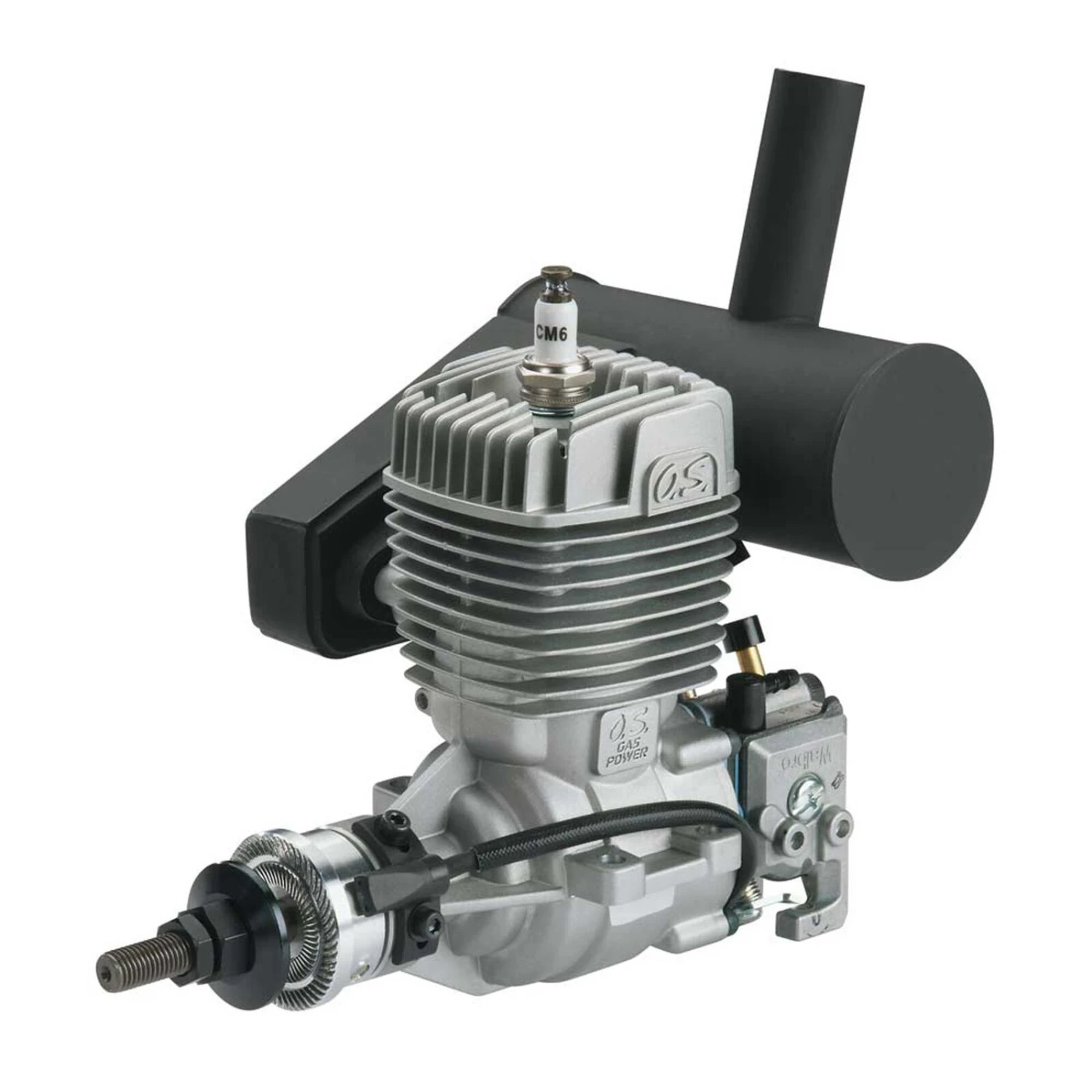

GT22 22cc Gas 2-Cycle Airplane Engine With Muffler

Original price was: $353.00.Current price is: $98.99.

SKU: OSMG1522 Categories: Engines, Parts, Electronics & Accessories Tag: OS Engines

Safe Payments, Happy Customers
Unbeatable Quality, Unbeatable Value
7 days return and exchange
Elevate Your Shopping Experience

Description
Reviews (0)

Gasoline power for your .90-1.20 aircraft

An investment in O.S. gasoline power quickly pays for itself in fast starts, higher power and more flights from your fuel budget. For the many planes that use 2-stroke .60-.91 or 4-stroke 1.20 glow engines, the GT22 – the third gasoline engine available from O.S. – is the perfect choice. It cranks out nearly 10% more power than other 2-stroke gasoline engines of similar size! Throughout the GT22, the fit and finish are outstanding – always delivering the same high performance as when you first installed your brand new, hand-crafted, quality inspected O.S. engine.

Pitts style muffler has been reinforced at seam, bend and mounting bolt locations for strength.
Redesigned for even easier starting, the IG-02 electronic ignition system handles 4-6 cell NiCd/NiMH or 2-cell LiPo/LiFe batteries.
Includes single prop nut with locking nut.

Uses beam mounting for easy installation in planes designed for glow power.
Rear-mounted Walbro carburetor is custom-designed for the GT22 – a choke rod guide has also been integrated into the crankcase for effortless setup.

The GT22 Pitts muffler is built to last, with reinforced mounting bolt holes and webbing at high-stress points.

Complete package includes engine, muffler, electronic ignition module, CM-6 spark plug, muffler gasket and bolts.

Product Specifications

Manufacturer #	38200
Cylinders	Single
Benchmark Prop	15×10
Bore	1.26″ (32mm)
Crankshaft Type	Threaded
Power Type	Gas
Plug Type	CM-6 spark plug
Stroke	1.08″ (27.5mm)
Engine (Only) Weight	26.86 oz (761.6 g) w/o muffler
Muffler Type	2-piece aluminum
Ignition Weight	3.70 oz (105 g)
Crankshaft Threads	UNF-2A 5/16-24
Product Width	2.7″ (70mm) at mounting tabs
Product Height	3.1″ (140.5mm) bottom of mounting tab to top of muffler
Prop Range	16 x 8 – 17 x 8
RPM Range	1,800 – 9,000
Muffler Weight	4.68 oz (132.6g)
Oil Type & Content	50:1 mix ratio 2-cycle
Product Length	5.5″ (139.5mm) from carburetor to front of drive hub
Displacement	1.35 cu in (22 cc)
