Key Features
- Equivalent to or surpassing the power of a 90-size, 2-stroke, glow engine for sport and scale airplanes weighing 8 to 13 lb (3.6 to 5.9 kg)
- Ideal for 3D airplanes weighing up to 10 lb (4.5 kg)
- Ideal for models requiring up to 1800 watts of power
- High torque, direct drive alternative to inrunner brushless motors
- External rotor design for better cooling
- High-quality construction with ball bearings and hardened 6mm steel shaft

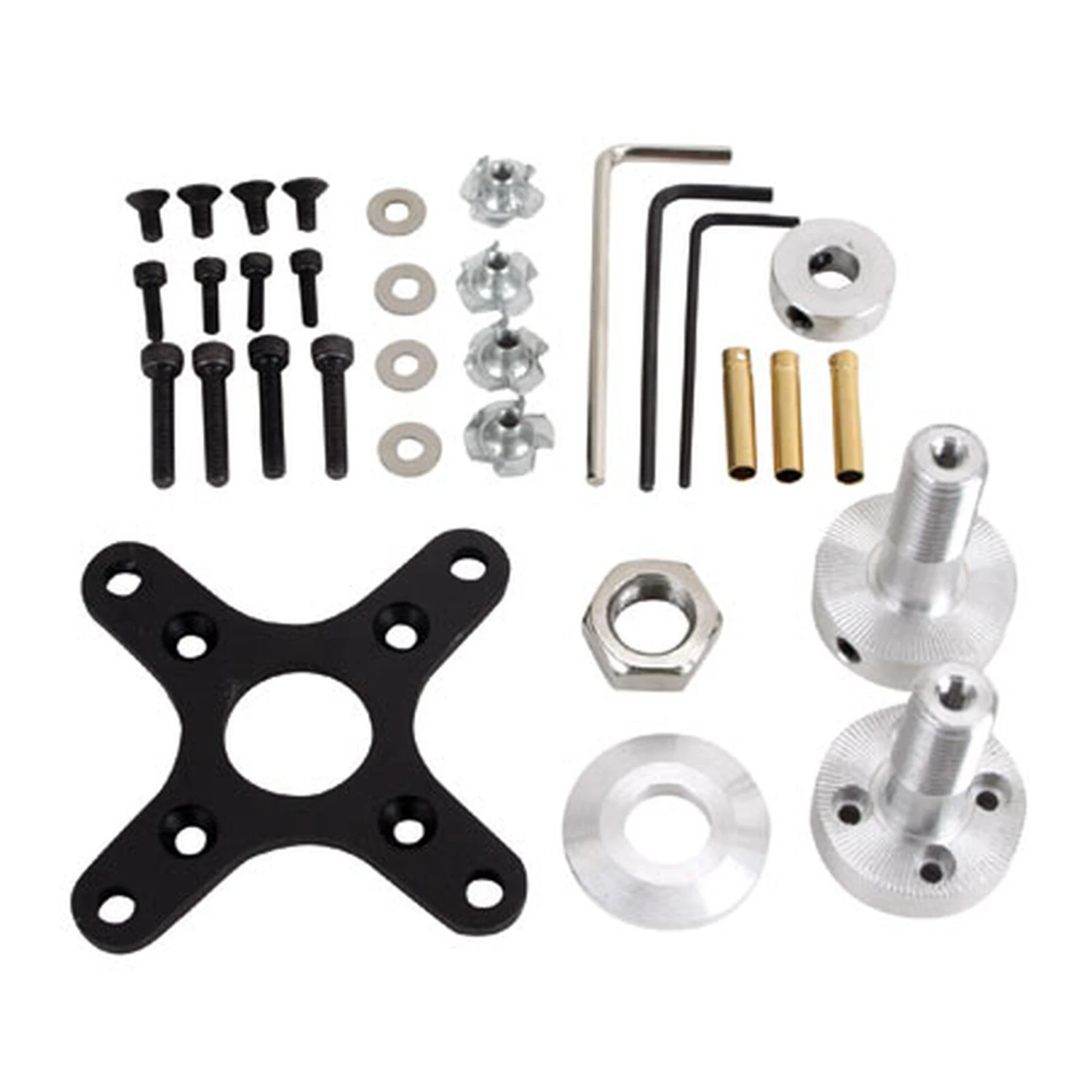

- Includes mount and mounting hardware with two 10mm prop shaft adapters tapped out for 8-32 threads
- Slotted 14-pole outrunner design
Needed To Complete
6Sā8S Li-Po or 18-26 Ni-MH /Ni-Cd
16×8 to 18×8 electric props
85A High Voltage Brushless ESC

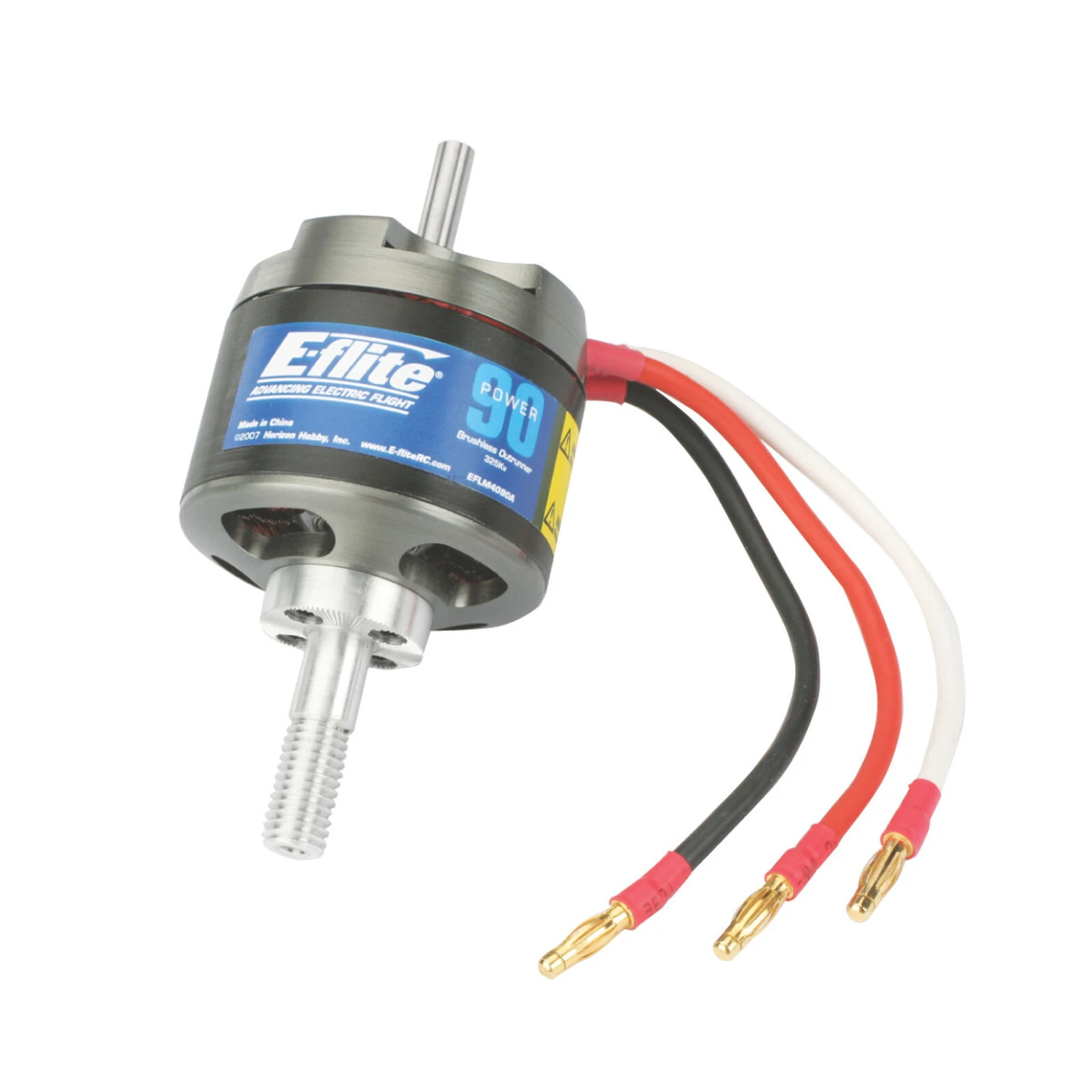

Overview
Designed to deliver clean and quiet power equivalent to or surpassing the power of a 90-size 2-stroke glow engine for sport and scale airplanes weighing 8 to 13 pounds (3.6 to 5.9 kg), 3D airplanes up to 10 pounds (4.5 kg), or models requiring up to 1800 watts of power. It will provide excellent 3D performance for the Hangar 9 Frenzy 100 ARF, ShowTime 4D 90 ARF, Funtana X 100 ARF and other similar class models. The Power 90 also provides great power and performance for the Seagull Ultimate Bi-Plane 90 ARFs.
- Equivalent to or surpassing the power of a 90-size, 2-stroke, glow engine for sport and scale airplanes weighing 8 to 13 lb (3.6 to 5.9 kg)
- Ideal for 3D airplanes weighing up to 10 lb (4.5 kg)
- Ideal for models requiring up to 1800 watts of power
- High torque, direct drive alternative to inrunner brushless motors
- External rotor design for better cooling
- High-quality construction with ball bearings and hardened 6mm steel shaft
- Includes mount and mounting hardware with two 10mm prop shaft adapters tapped out for 8-32 threads
- Slotted 14-pole outrunner design
Product Specifications
| Bushing Or Bearing | Bearing |
| Wire Gauge | 13 AWG |
| Idle Current (Io) | 2.00A @ 10V |
| RPM/Volt (Kv) | 325Kv |
| Recommended Prop Range | 16×8 to 18×8 |
| Resistance | 02 ohms |
| Shaft Diameter | 6mm (.24 in) (Includes two 10mm threaded prop shaft adapters with 1.5 pitch) |
| Connector Type | 4mm Bullet |
| Outer Diameter | 2.20 in (56mm) |
| Motor Design | Outrunner |
| Adjustable Timing | Yes |
| Voltage | 6S – 8S LiPo |
| Motor Type | Brushless |
