Key Features
- Up to 80 amps continuous current with proper air flow and 100 amps burst current (15 seconds)
- 5V switch-mode BEC capable of 5 amps continuous current with 6 amps max burst on any recommended input voltage
- Drive up to 7 analog or 6 digital standard-size servos with the BEC on any recommended input voltage
- 3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltage
- Programmable motor braking
- Safe power-arm mode prevents accidental starts
- Programmable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 74% of battery starting voltage
- Programmable throttle input range (1.1msā1.9ms or 1.2msā1.8ms)
- Programmable soft start-up rate – .25 second or 1 second
- Auto motor shut down if signal is lost or there is interference
- Programmable timingā5 user-selectable rangesāuse with a large variety of brushless motors
- Two operating modesāAirplane or Heli

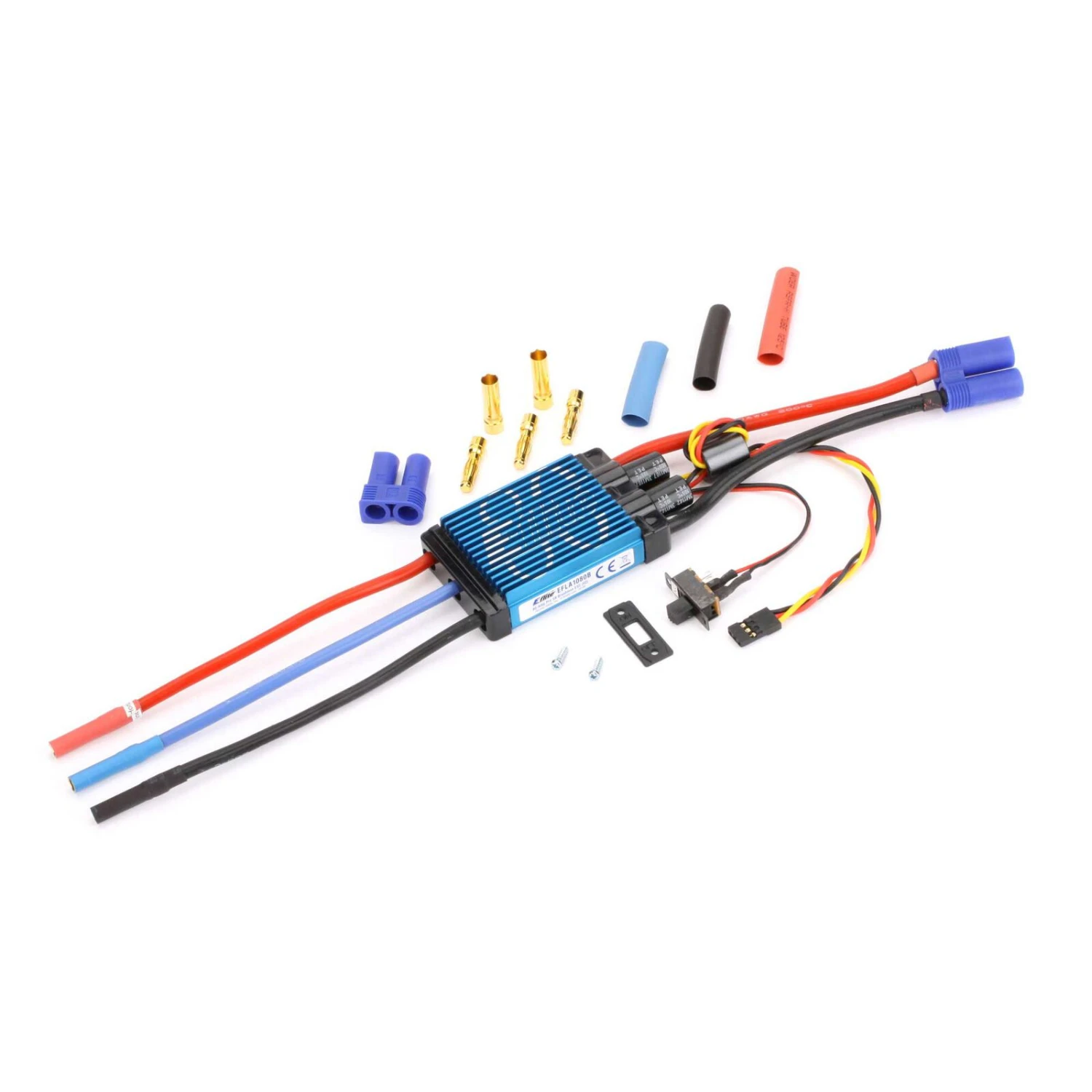

- Pre-wired connectorsāE-flite EC5 on battery input and 4.0mm female gold bullets on motor output leads
- NOTE: Not recommended to use with E-flite Power 60 Brushless Outrunner (EFLM4060B)
Overview

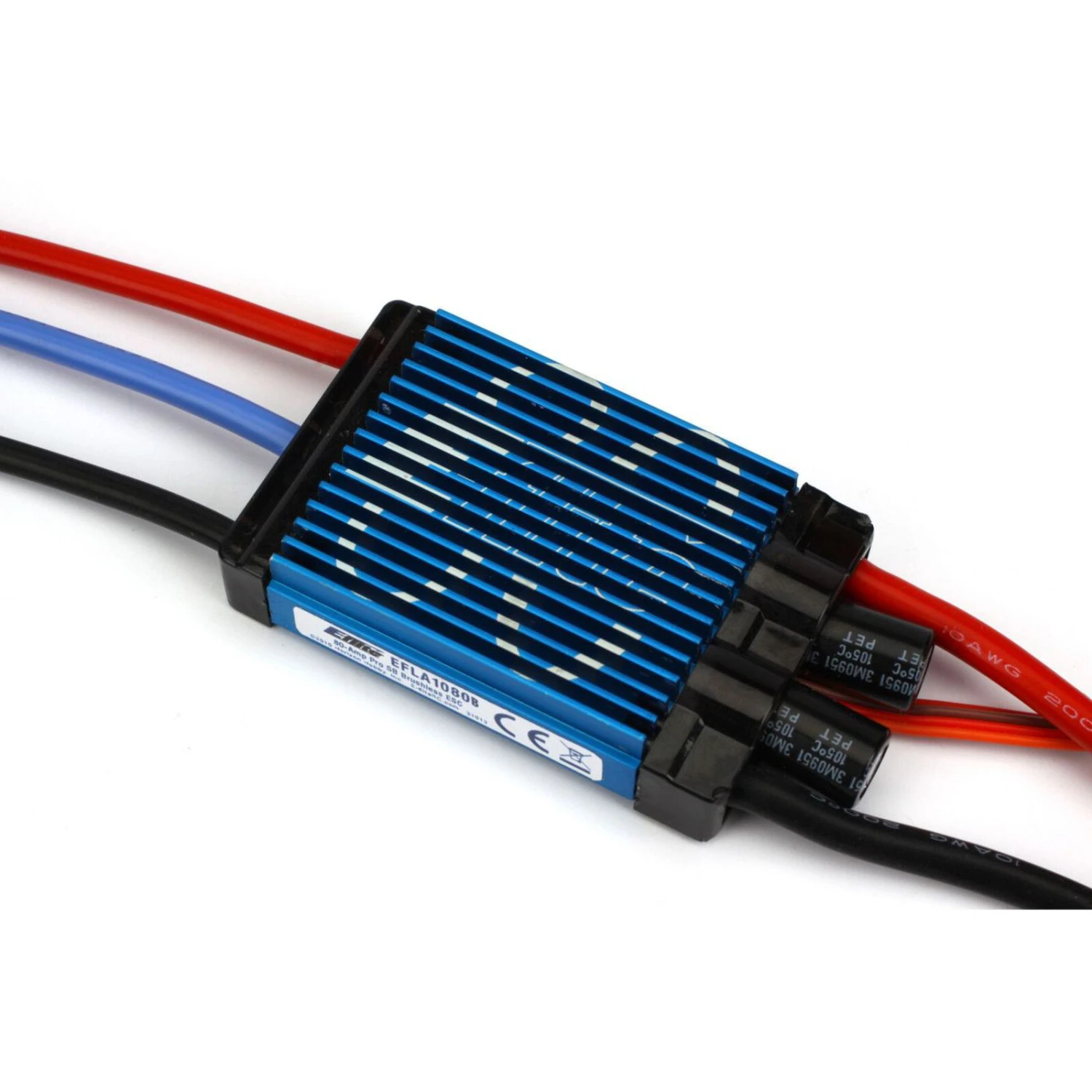

When performance matters in your high-current applications, look no further than the E-fliteĀ® 80-amp Pro switch-mode ESC. This is a high-quality, efficient sensorless brushless electronic speed control with an integrated switch-mode BEC. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication. It is capable of up to 80 amps continuous current when using 3- to 6-series Li-Po battery packs. You can drive up to 7 analog or 6 digital standard-size servos with the BEC on any recommended input voltage. Featuring an exposed, finned heat sink aluminum case with lightweight plastic end-caps, safe power-arming along with advanced programmable features such as low voltage cutoff, braking, timing, throttle input range and more, the E-flite 80-amp Pro switch-mode ESC is truly a āpro seriesā electronic speed control.
This product is not intended for use by children under 14 years of age without direct adult supervision.
- Up to 80 amps continuous current with proper air flow and 100 amps burst current (15 seconds)
- 5V switch-mode BEC capable of 5 amps continuous current with 6 amps max burst on any recommended input voltage
- Drive up to 7 analog or 6 digital standard-size servos with the BEC on any recommended input voltage
- 3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltage
- Programmable motor braking
- Safe power-arm mode prevents accidental starts
- Programmable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 74% of battery starting voltage
- Programmable throttle input range (1.1msā1.9ms or 1.2msā1.8ms)
- Programmable soft start-up rate – .25 second or 1 second
- Auto motor shut down if signal is lost or there is interference
- Programmable timingā5 user-selectable rangesāuse with a large variety of brushless motors
- Two operating modesāAirplane or Heli
- Pre-wired connectorsāE-flite EC5 on battery input and 4.0mm female gold bullets on motor output leads
- NOTE: Not recommended to use with E-flite Power 60 Brushless Outrunner (EFLM4060B)
Product Specifications
| Amperage | 60 & Up |
| Forward | Yes |
| Auto Cutoff | Yes |
| BEC Continous Current | 5A |
| Output Connector | 4mm Bullet |
| Overload Protection | Yes |
| Maximum Burst Current | 100A |
| Connector Type | EC5 |
| BEC Voltage | 5.5V Switch-mode |
| Part Type | Electronics |
| Time Delay Brake | Yes |
| Brakes | Yes |
| Programmable | Yes |
