-20 20cc Gas Airplane Engine With Muffler
Original price was: $279.99.$99.99Current price is: $99.99.
- Safe Payments, Happy Customers
- Unbeatable Quality, Unbeatable Value
- 7 days return and exchange
- Elevate Your Shopping Experience
Key Features
- Two sealed bearings on crankshaft-simple design for lighter weight
- Beam mounting allows easy fit in the same mount as comparable glow engines
- Aluminum alloy crankcase with advanced CNC machining
- Rear mounted pumped carburetor ensures easier installation and smooth idling and dependable fuel flow during flights
- Fully automatic electronic ignition
- Also includes: spark plug, gasket, bolts, throttle arm extension and manual
- Two-year limited warranty through Hobby Services beginning at date of purchase
Overview
Glow power isn’t the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gasoline upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment.
A generous package of “extras” and electronic ignition for starting ease and top performance make the DLE-20 an attractive alternative to glow…and a solid buy for value and performance.
DLE Electronic ignition
Electronic ignition is the no-hassle answer to simpler starts and higher performance.
Loaded with Extras!

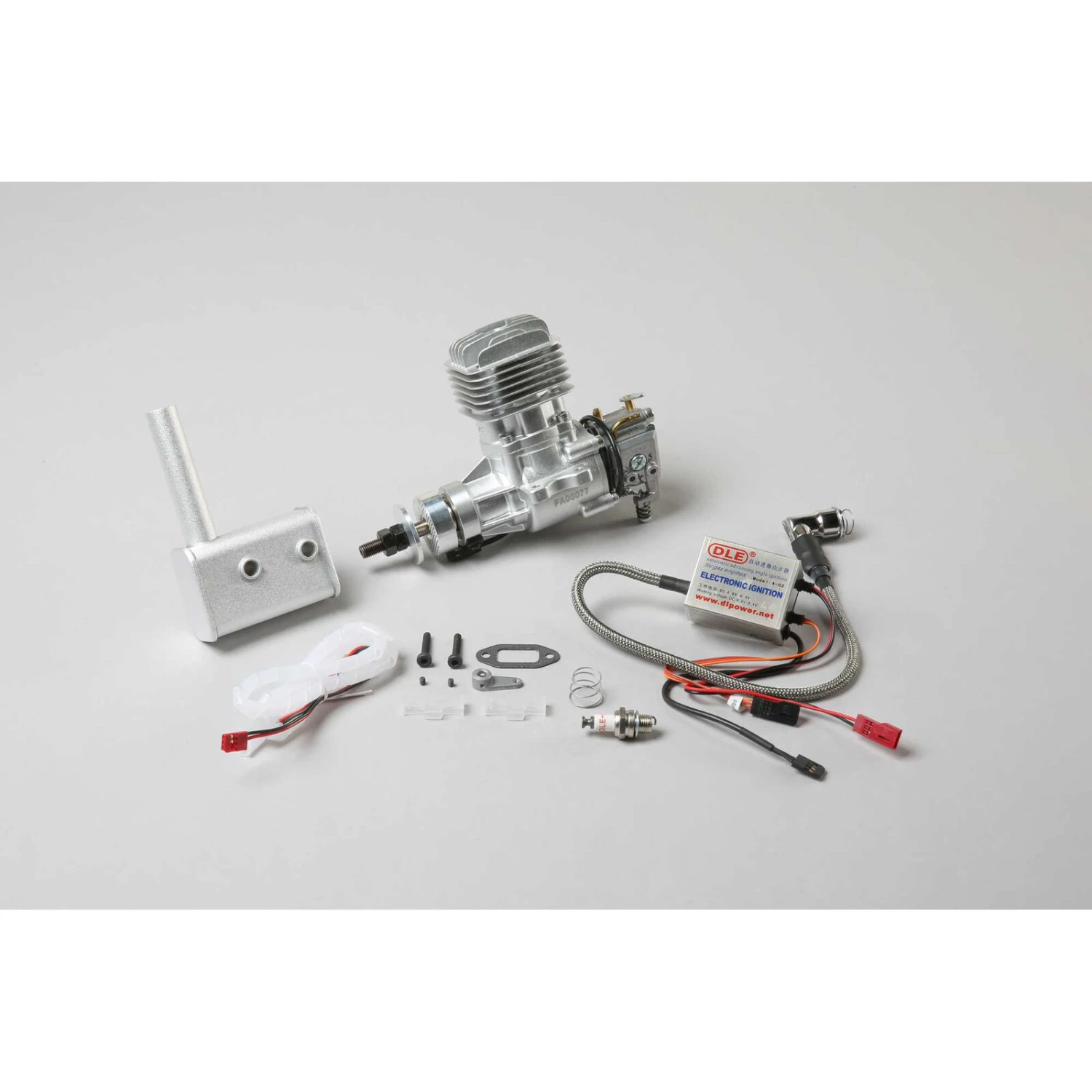

The DLE-20 package includes a muffler, spark plug, gasket, bolts, throttle arm extension & manual.
- Two sealed bearings on crankshaft-simple design for lighter weight
- Beam mounting allows easy fit in the same mount as comparable glow engines
- Aluminum alloy crankcase with advanced CNC machining
- Rear mounted pumped carburetor ensures easier installation and smooth idling and dependable fuel flow during flights
- Fully automatic electronic ignition
- Also includes: spark plug, gasket, bolts, throttle arm extension and manual
- Two-year limited warranty through Hobby Services beginning at date of purchase
Product Specifications
| Displacement | 1.22 cu in (20cc) |
| Oil Type & Content | 30:1 2-cycle oil mixture |
| Product Length | 5.43″ (138mm) from carburetor to prop washer |
| Ignition Weight | 4.23oz (120g) |
| Muffler Weight | 1.76oz (50g) |
| Cylinders | Single |
| Product Width | 2.37″ (60mm) between center of mounting holes |
| Total Weight | 29.9 oz (820 g) |
| Stroke | 1.0″ (25mm) |
| Muffler Type | Pitts |
| Engine (Only) Weight | 22.93 oz (650g) |
| Power Type | Gas |
| Plug Type | NGK CM6 |
| Bore | 1.3″ (32mm) |
| Crankshaft Type | Threaded |
| Product Height | 3.56″ (90mm) from center of crankshaft to top of cylinder head |
| Prop Range | 14×10 – 17 x 6 |
| Starter Type | Hand Held Starter |
